In a concrete pumping system, the S-Valve (S-pipe, S-valve) plays a crucial role, determining the operational efficiency of the entire equipment. The S-Valve is responsible for transferring the concrete flow from the cylinder to the distribution pipe, ensuring continuous flow, stable pressure, and minimizing leaks.

Currently, South Korean concrete pumps (JunJin, Everdigm, KCP, etc.) all utilize S-Valves with similar designs. As a result, South Korean and Chinese S-Valves can be interchangeable, providing great flexibility for users during maintenance and repair.

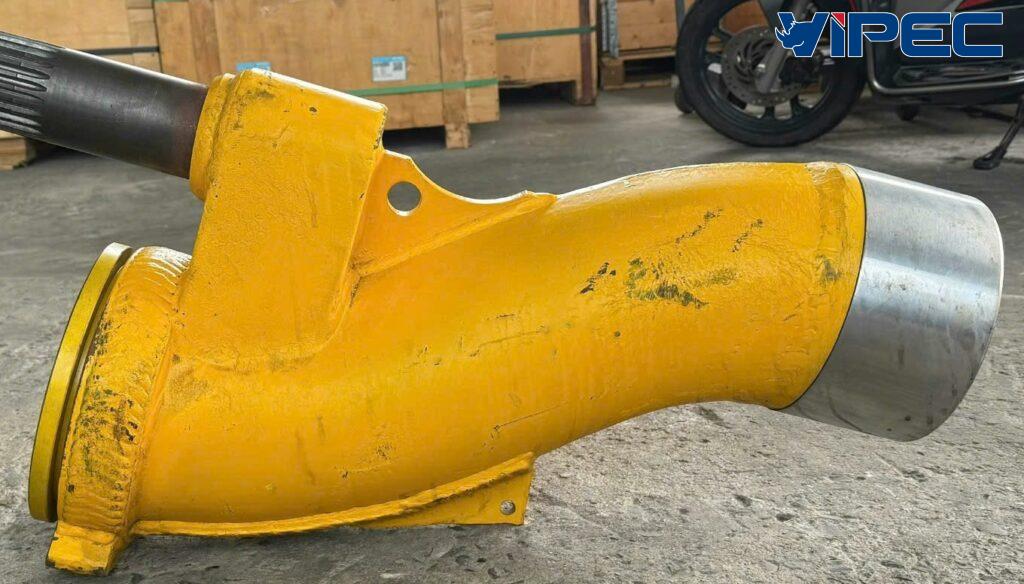

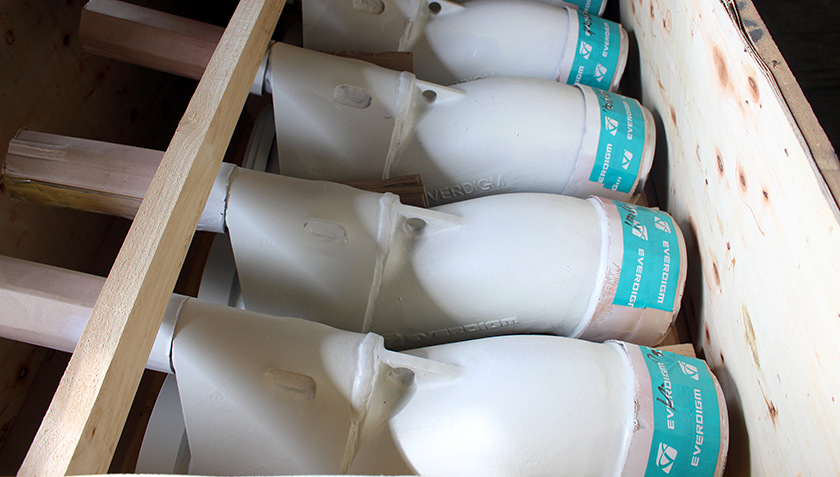

Everdigm S-Valve from South Korea

Chinese S-Valve

1. Structure

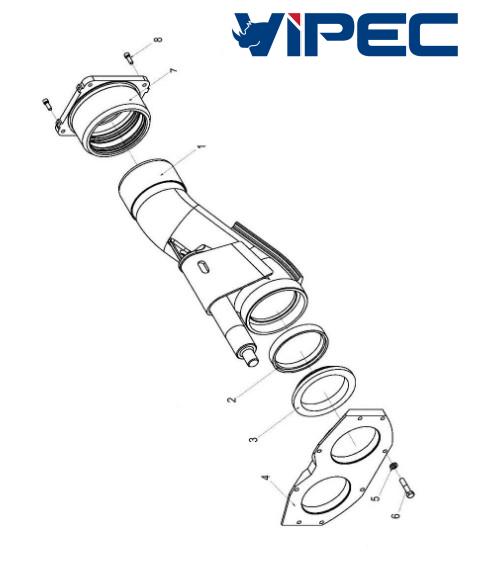

Based on technical drawings and standard configurations, the S-Valve typically consists of the following main components:

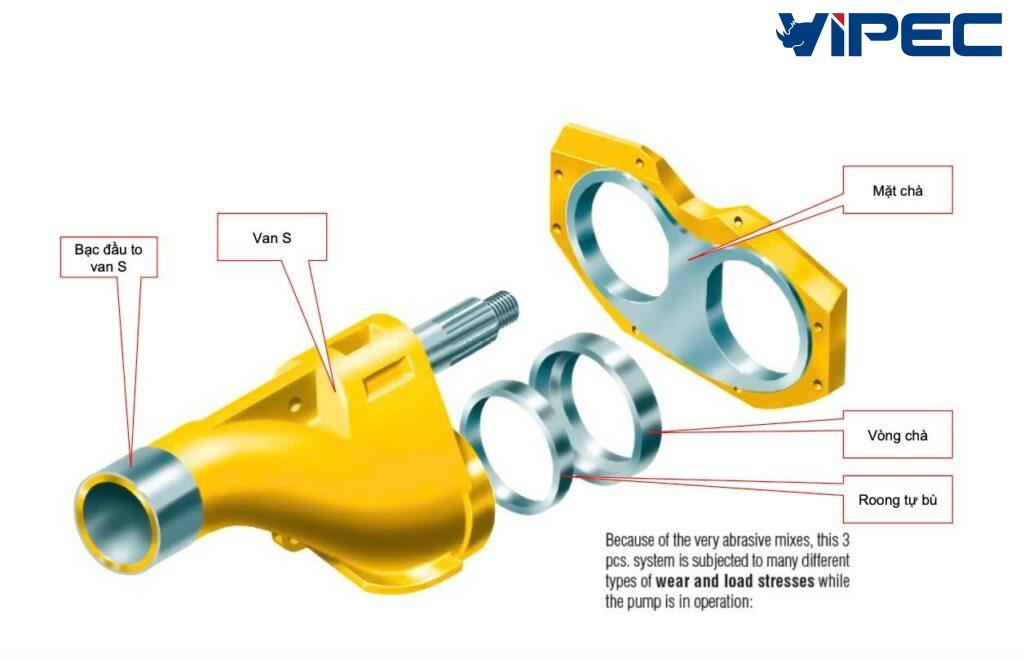

S-Valve Body (Swing Pipe): S-shaped, made from wear-resistant alloy steel, transmitting the concrete flow from the cylinder to the distribution pipe.

Wear Ring: Creates a tight seal between the valve body and the wear plate.

Wear Plate: A wear-resistant steel plate that directly contacts the concrete, easily replaceable.

Compensation Ring: Maintains pressure, preventing leaks during pumping.

Large and Small Bushings (Bearing Case/Bushing): Supports the valve shaft, reducing friction during valve rotation.

Bolts, washers, springs: Secure the entire valve assembly.

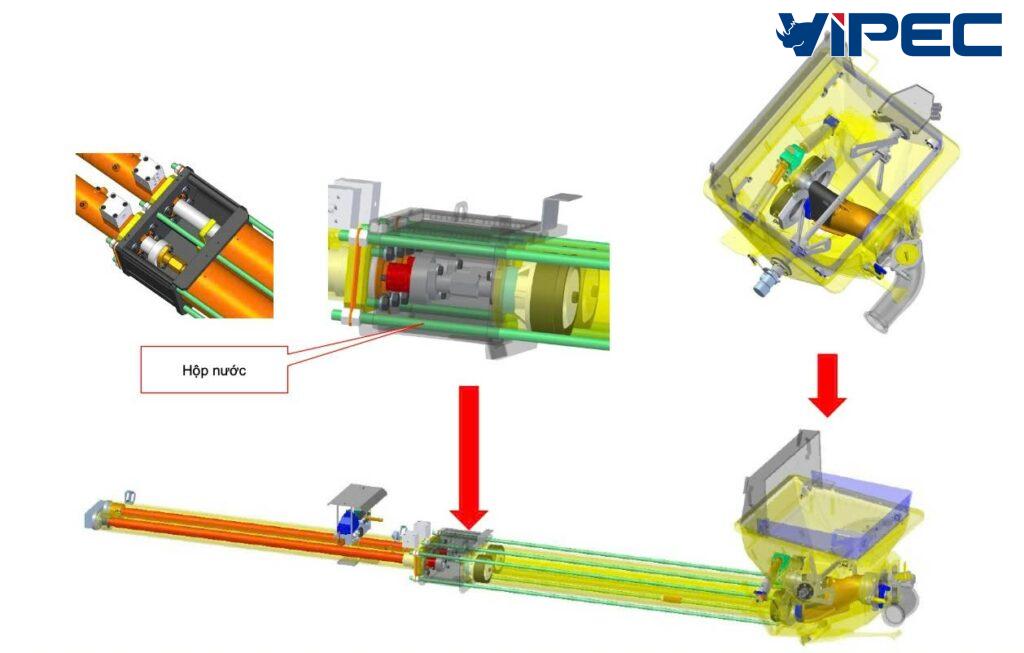

The S-Valve is installed in the pump hopper, connected to elbow number 1.

2. Operating Principle

The S-Valve rotates thanks to a hydraulic mechanism synchronized with the piston stroke of the pump cylinder. When one cylinder pushes the concrete, the S-Valve opens to the distribution pipe; when the piston reverses, the S-Valve rotates to the other cylinder, creating a continuous pumping cycle.

During operation, the S-Valve must withstand:

High concrete pressure

Continuous friction with abrasive materials

Impact loads during directional changes

--> Therefore, the material used and assembly precision are critical factors determining lifespan.

3. Comparison of Chinese and South Korean S-Valves 2018

	South Korean S-Valve	Chinese S-Valve
Material	Typically uses high-quality heat-treated alloy steel → high durability, long lifespan.	Uses cast steel but quality varies by manufacturer.
Finish	Precision machining, smooth surface, tighter joints.	Rough surface; the exterior requires an additional wear-resistant coating, making it thicker and coarser.

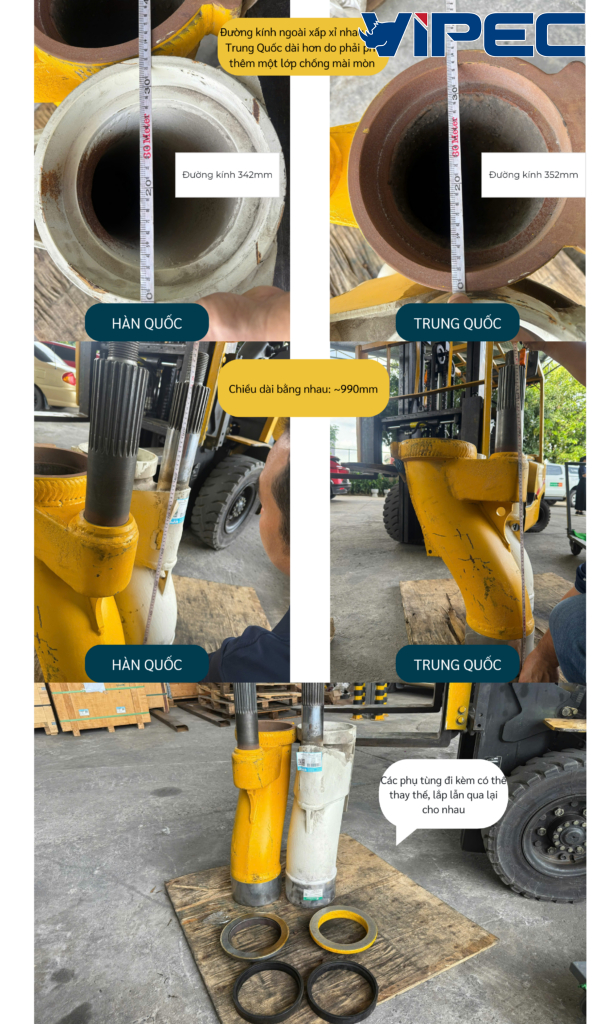

Dimensions	Outer diameter approximately similar: ~342mm – 352mm Inner diameter equal: ~320mm Length equal: ~990mm
Price	Twice as expensive but lasts 1.5 to 2 times longer, fewer breakdowns, ensuring stable operation under continuous and harsh pumping conditions.	Chinese S-Valves are generally cheaper, suitable for quick replacement needs at low costs.

The question arises: Can the 2018 South Korean S-Valve be interchangeable with the Chinese version?

Let’s go through the comparison results below:

To ensure interchangeability between Chinese and South Korean S-Valves, several technical factors need to be synchronized, including:

Uniform geometric design: Curvature, cross-section, and surface structure must adhere to the same standards to avoid leaks or concrete blockages.

Precise dimensions: Shaft diameter, assembly spacing, and steel wall thickness must be controlled accurately to the millimeter.

Commonly used accessories: Including bearings, bushings, seals, compensation rings, etc. If the design is not synchronized, the accessories will be incompatible, leading to rapid wear and reduced lifespan.

Thus, the Chinese and South Korean S-Valves have comprehensive compatibility.

4. Advantages of Using Interchangeable S-Valves 2018

Choosing S-Valves that can be interchanged between the two markets brings many benefits to businesses:

Cost optimization: Actively selecting spare parts supply from various countries, reducing dependence on a single manufacturer.

Ensuring construction progress: When urgent replacements are needed, businesses can use readily available components without waiting for imports.

Increased equipment lifespan: Thanks to standardized design, stable operating parts reduce the risk of synchronized failures.

Convenient maintenance: Technicians can easily operate, saving repair time and minimizing machine downtime.
